d_lines — d_lines • forplot

Modify lines in density (d) items of a forest plot object (fobj). Passed to lines.

d_lines(fobj, item = NULL, linenr = NULL, ...)

Arguments

fobj: a forest plot object of class 'fobj'
item: item to be modified, either a number or the name of the column in fobj$dat. If NULL (the default), all items of type 's' are affected
linenr: lines to be modified. A vector of length 2 refering to the variable and the arm. If NULL (the default), all lines are affected. If one number is NA, all lines are affected.
...: options to be passed to lines

Value

a forest plot object of class 'fobj'

Examples


fobj<-genfobj(layout = c("t","t","t","t","t","d","t","f","t"),
dat = forplotdata, obs = forplotdata_bp,
 lwidths = c(0.6,0.4,0.6,0.4,0.6,1,1,1,0.5))

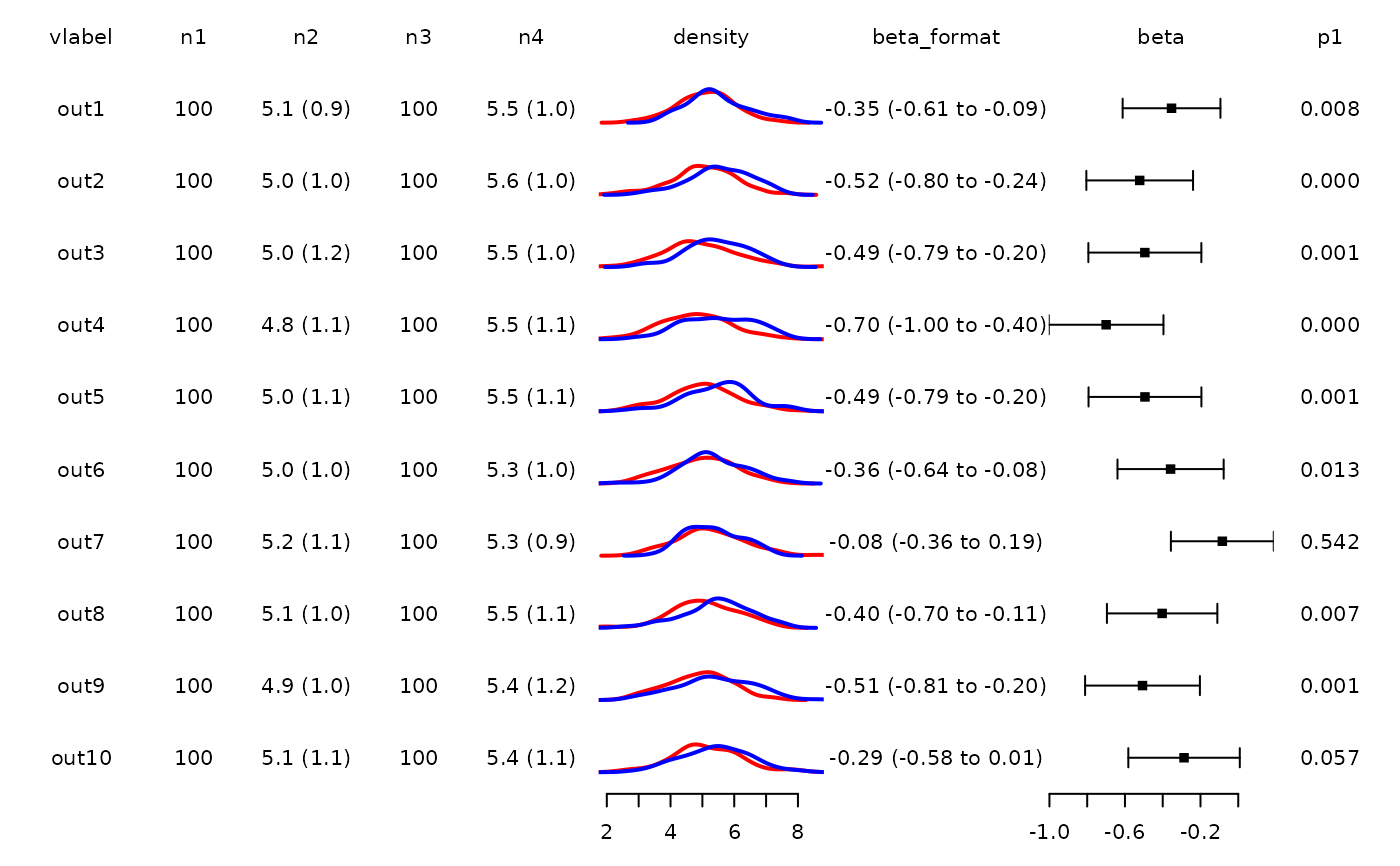

#all lines:
fobj<-d_lines(fobj=fobj, lw=2)
plotfobj(fobj)

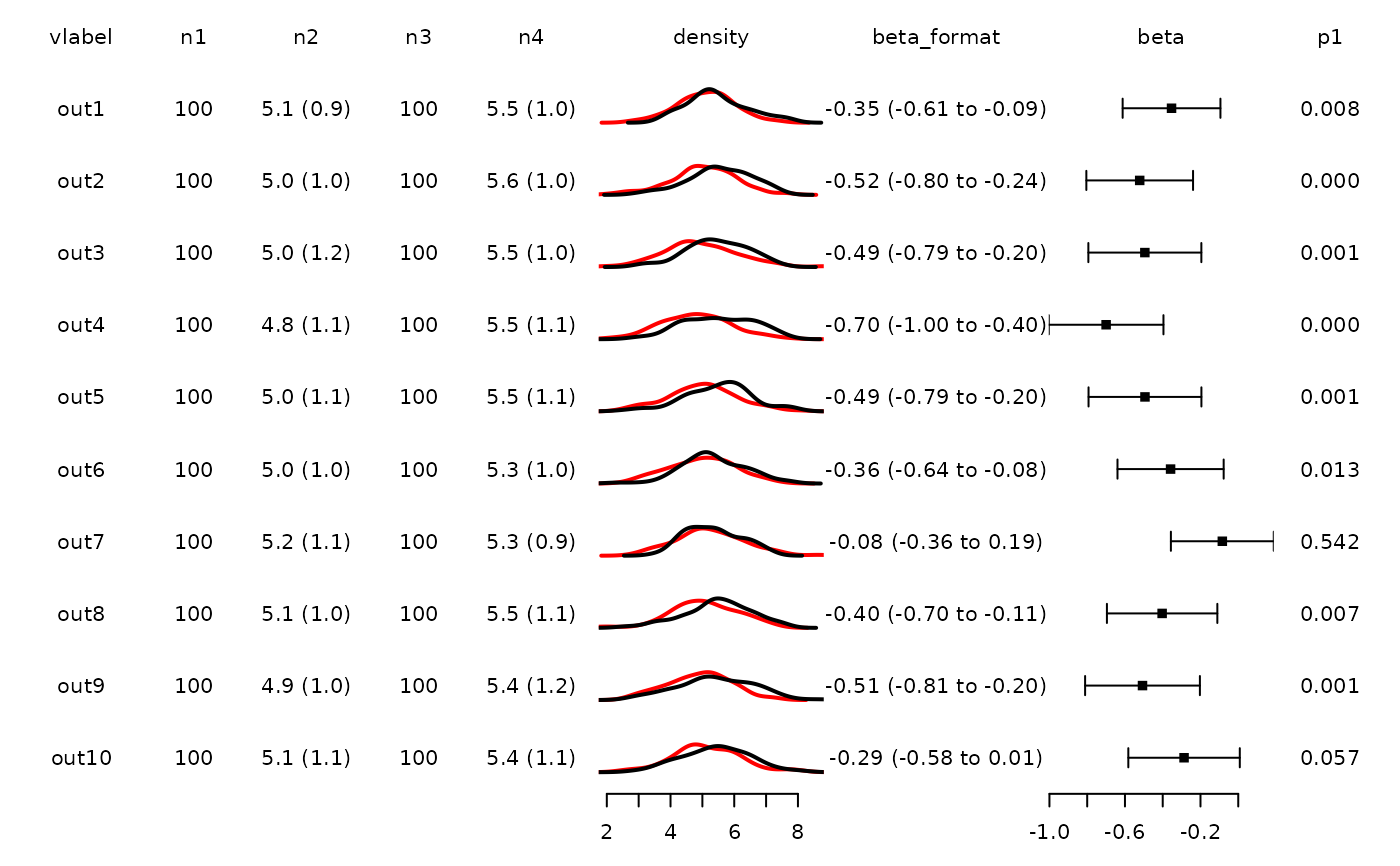

#only one arm:
fobj<-d_lines(fobj=fobj, linenr=c(NA,2), col=1)
plotfobj(fobj)
